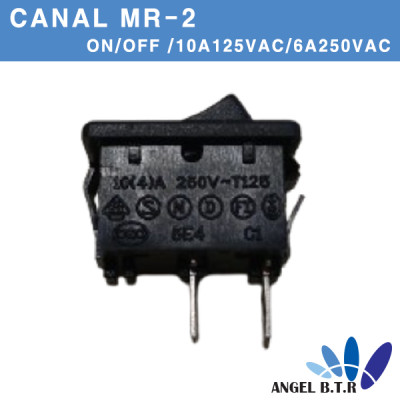

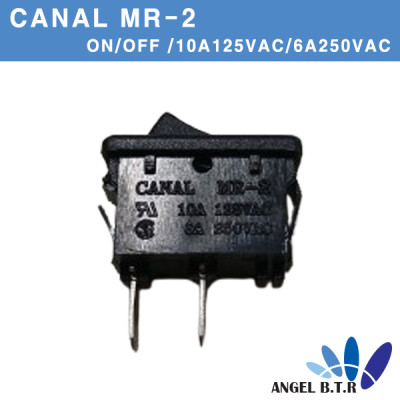

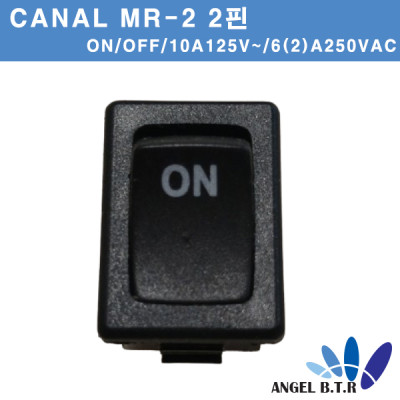

CANAL MR-2-113-C5-BB-3NW boat switch
Two-pin PCB pin (pin length about 3mm section 1*0.7mm),
load current: 10A 125VAC, 6A 250VAC.
Open and close form: on-off.
Panel size: 21 mm long, 15 mm wide.
Mounting hole size: 19 mm long, 13 mm wide.
10 (4) A 250VAC ~ T125 (VDE, ENEC)
10 (4) A 250V ~ T125 (CQC)
Initial contact resistance: 20 mm (Max.) measured less than 3 mm
Insulation resistance: 500VDC 100M ω (minimum)
Dielectric strength: 1,000VAC 1 min
Electrical life: 50,000 cycles for switching class II appliances
Base: Nylon 66, UL rate 94V-2 min
Actuator: PBT/nylon 66, UL rate 94V-2 min
Spring: Piano string
Contact: silver alloy
Terminal: Silver-copper plated, PCB terminal (pin length about 3mm, section 1*0.7mm, foot spacing 7mm)
| 품명 | 상품페이지 참고 |
|---|---|
| 모델명 | 상품페이지 참고 |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상품페이지 참고 |
| 제조국 또는 원산지 | CHINA |
| 제조자 | CANAL |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 상품페이지 참고 |
